Autodesk has released a new version of AutoCAD every year since AutoCAD 2004. Each release adds more tools and refines existing ones. After past releases of AutoCAD, the TIPniques column usually covers the new features in about three articles. This time we are digging deeper into the new features and are really exploring what this release of AutoCAD has to offer. This is the fourth article in the series and it appears there could be two to three more! I wonder, are we really doing a more thorough job of evaluating the new features, or are there that many more things to talk about in AutoCAD 2011? Maybe a little bit of both.

Hatches and gradients

Hatches have been in AutoCAD for a long time. In AutoCAD 2011 users can now create and edit hatches in real time. That means that you can see your hatch patterns while you create them. The same goes for editing them. The biggest change is that the hatch dialog box is gone. The settings and controls for creating hatches are now in a contextual ribbon tab. Contextual ribbon tabs were introduced in AutoCAD 2010. These tabs are not visible during regular operations until a trigger occurs. In the case of hatches, the hatch tab will appear when the Hatch command is started. The same is true for the Edit Hatch Command.

Figure 1: Click image to enlarge The HATCH Command is no longer a dialog box. It is now a contextual ribbon panel. This change allows users to create and edit hatches in real time.

Figure 1 shows the hatch contextual ribbon tab. All of the regular controls and settings are there. When the hatch command is started, the tab opens and is activated and the command defaults to a pick point mode of creating hatches. If you need to select an object instead, go to the Boundaries panel and pick the Select Objects button. To change the pattern to be drawn, click on the Pattern Option in the Properties panel. The same goes for angle, scale, and color. You can use the slider bars to change most of the settings. If you miss the old dialog box, you can access it by clicking on the diagonal arrow on the bottom right of the Options panel.

As you create your new hatch pattern, a real time preview hatch is displayed. A hatch is not drawn yet until you complete the command, but you can get a real time preview of the hatch you are creating. Once you have selected an area to hatch, change the settings such as scale and pattern. The preview is updated in real time. Possible hatch areas will be displayed as you move your mouse over a closed area, temporarily displaying a preview of what could be your new hatch.

AutoCAD 2011 has added a few new options to hatches. One is the ability to change the layer the hatch is on while you create it. Expand the Properties panel by clicking on the arrow at the bottom of the panel. There is an option where you can assign the layer for the new hatch. By default, it is set to Current Layer. If you need to create all of your hatches on a specific layer, set it here.

Another new option is to create a background fill under your hatch pattern. In the past, you would have to create two hatches to reproduce this effect. The new command, HATCHTOBACK, was introduced thanks to the AUGI Wish List program! This new command, found in the Modify panel of the Home Tab, will send hatches underneath all other objects in the drawing. It works similarly to the TEXTTOFRONT command, only in the opposite direction, of course.

There is also a new system variable for hatches called MIRRHATCH. It enables you to mirror hatches and to keep their orientation. It works similarly to the MIRRTEXT setting. If it is set to zero, the original angle will be maintained. If it is set to ONE, the hatch angle will be mirrored. There is also a Match Properties button inside the Hatch Tab. You can copy the properties of another hatch and apply them to your new hatch while you create it.

Once a hatch has been created, editing it can be very easy. Double-click the hatch to open the Contextual Hatch Edit Ribbon Tab. Starting the Hatch Edit command by either typing it on the command line or picking the button from the Ribbon will start the "old" hatch edit dialog box.

Once the contextual ribbon is up, all of your options are there, just like the create hatch options. One last thing, we now have the ability to use grips to edit some of the basic settings of your hatch pattern. Select a hatch. A Blue, Filled, Circle glyph will appear in the center of the hatch object. Hover over it to see your options. They are: Stretch, Origin Point, Hatch Angle, and Hatch Scale. Click the one you want and drag your mouse to edit these settings in real time.

Figure 2: Hatches can be edited with Grips. Stretch, Origin Point, Hatch Angle, and Hatch Scale can all be edited without starting a command.

Polylines

Who doesn't love a good Polyline? Who hates editing them? With the new tools for Polylines in AutoCAD 2011, editing them is a much easier task. Similar to the new grip edit abilities in hatch objects, polylines have new grip edit features. Select a polyline, hove over the midpoint grip and a box will pop up giving you three options: Stretch Vertex, Add Vertex (my favorite), and Convert to Arc. Hover over an End Point Grip and your options are: Stretch Vertex, Add Vertex, and Remove Vertex. These options are some of the most common edits that you would want to do with the PEDIT (Polyline Edit) command, except maybe the join option. If you select one of the grips, press the CTRL key to toggle through the three options. You will see the changes take place in real time. You can also select segments and edit them. Hover over the segment of the polyline you want to edit, press and hold the CTRL key, then left-click to select it.

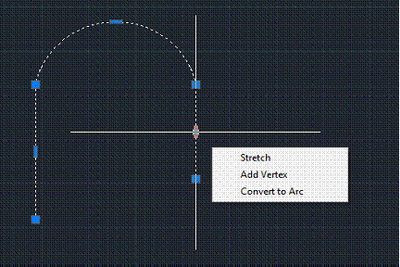

Figure 3: Now you can add a vertex to a polyline on the fly by using the grip edit tools.

Splines

Splines have been updated, allowing you more control over them. You can define a Spline by using either Control Vertices or Fit Points. Control Vertices (CV) Splines are appropriate if you are working with NURBS (which you can in AutoCAD 2011) and 3D surfaces. The traditional method of Fit Splines makes sure that the spline object passes through the Fit points, which are the points you pick when you draw your spine. The CV Splines have a degree of tangency to the Control Vertices, but do not pass through them. Grip editing a spline, like hatches and polylines, gives you easy access to several editing features. One tool is a Pull Down Arrow that allows you to switch form Fit Points to Control Vertices. It won't change the spline, just how you control it. The Grip Edit options are: Stretch Fit Point (or CV), Add Fit Point, remove Fit Point. Control Vertices have a fourth option, Refine Vertices. This option adds more control vertices to your spline but doesn't change your spline.

Conclusion

Wow! We only covered three topics. AutoCAD 2011 adds real-time editing tools to hatches, polylines, and splines. Each of these tools now have real-time grip editing abilities that allow you to change these object types without starting a command. The new Hatch contextual ribbon tab allows you to create new hatches in real time and saves screen room while doing it. Adding new features to traditional tools like these is one reason AutoCAD 2011 is a more efficient version of AutoCAD than its predecessors.
